Antares Rover


Object Avoidance Navigation



Your browser is not able to display this multimedia content.

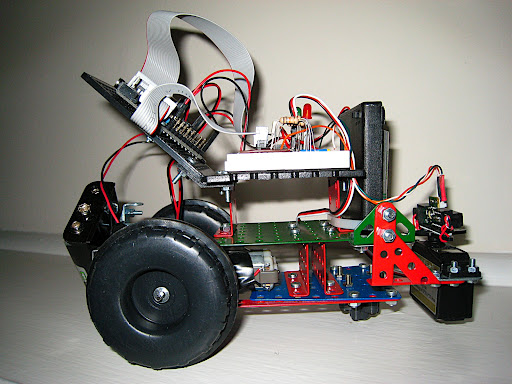

Started out building a basic rover that uses IR for navigation.  It's been a long wait, waiting for various parts, reading up on connectors, components, basics, but finally have it ready.  I'll post a video sometime later, for now only pictures. The rover is mostly metal construction and very sturdy yet reusable.  I can take it apart and build a different configuration

Before starting out, I set  a few objectives for building Antares.

  • A reusable hardware platform.  That means minimize gluing, taping, no permanent fixtures, no drilling. I used a construction set to build the frame. As you can see everything is screwed on, not taped.  The only exception is the breadboard since it came with a sticky bottom and no holes to use screw
  • Using standard connectors for electronic components, minimize or eliminate soldering.  Initial objective was to eliminate soldering since I've never soldered before. But there are some areas you have to solder like the motor terminal and wires.  I used soldering to a minimum.  Most connections are reusable.  One area where I could've used a connector but ended up soldering was the IR.  I didn't get the connector, and didn't wait for one and pay extra shipping so soldered it.  The connector is a Japanese standard, so not very easily available
  • Picaxe allows for two power sources.  My platform has provisions for that. There are two battery holders
  • Easy access. Since this is supposed to be a work-in-progress rover, I wanted easy access to both the PCB and the breadboard, that meant I can't stack these two on top of each other(as seen on standard robot kits). That would make chaning connections extremely hard once configured.  That's why they have the 'L' shape and kept on top
  • Sturdy construction.  The rover must survive a few crashes without destroying electronics!  Well so far it's been doing great!
  • Those pesky details.  If you look closely, you'll see I've used plastic standoff's between the pcb and the plate, strain relief where the wires run from the motor, insulated bolts close to the battery terminal just in case! Don't want to short anything!

The rover works great even without the servo hookup.  I'll post a video soon.  Here are some more pictures.

Antares Rover


UPDATES:

Update on the Antares.  Reconfigured the sensor and the servo so that it is at a lower height. This was a good suggestion Fritz! Also was a test as to how easily I could make hardware modifications.

Changed the battery to a slimmer profile which now acts as a shield/bumper protecting the PCB and the breadboard.  The battery also has a motor kill switch which is very handy.  Antares is powered by two sets of batteries, one for the motor and servos and other for the processor.

Worked on the obstacle sensing logic so that it turns only as much as the obstacle and continues on.  Some more pictures and an amateur video.

IMG_0310.JPG?imgmax=512

 http://picasaweb.google.com/fployd/AntaresRover/photo?authkey=pm8LrZSx3VU#5225086982782402706

Your rating: None Average: 4 (2 votes)
fritsl's picture

Looking forward to the

Looking forward to the video! :D
fritsl's picture

Hey - it's me again :D I

Hey - it's me again :D I like your design, it looks cool. But all you guys who put the sensors so high, wont you have a problem driving into not so high objects?
jklug80's picture

RUN KITTY RUN! My first

RUN KITTY RUN! My first robot (modeled after Start Here) ran into small objects and the sensor was only a few inches off the ground. I would move it lower unless you only have walls and tall furniture to worry about.

Well you are correct that

Well you are correct that low lying objects will be a problem. The plan was to put the other sensor I have the IR/Photo transistor at the bottom which is good for close range detection. Haven't hooked it up yet. Still playing around with different configurations.
fritsl's picture

Well.. You made it

Well.. You made it re-configurable :D
Vince v2.0's picture

Where did you get that

Where did you get that frame? and the front free rotating wheel? id love to get my hands on those.

for the frame of my robot i made it from kaboodle, it makes for a soft bouncy robot chassis. because i was scared of gluing parts directly together. but id much rather screw the parts on like yours

I use merkr a set similar to

I use merkr a set similar to meccano. For the front wheels I use tamiya. Haven't heard of Kaboodle, will check it out.
maneuver's picture

another suggestin/question

Since you have removed the 2x2 batterypack that used to be under the breadboard; couldn't you remove those red spacers and put the breadboard directly down on the green plate? thus getting an even lower point of gravity..

/ vzz-clck-"Maneuver"

Actually I wanted the

Actually I wanted the breadboard and the pcb on top where it is easily accessible.  I keep adding sensors or leds or tinkering with different connections. If I follow the typical one-board-on-top design that is so common in kits, it becomes a pain to easily add or modify components or wires without dismantling the rover.

The battery case actually comes with a nice cover. I took it off, since I wanted to be able to easily remove batteries for recharging.  Functional first, aesthetics later! :)
